I-SAFE 2

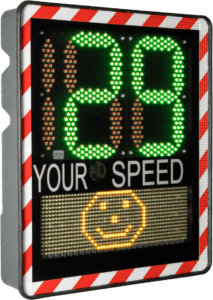

The I-SAFE 2 is a speed display that displays the speed together with text or picture messages.
It combines a “numbers” matrix with a full LED matrix to display texts or pictograms. A three-colors text matrix is available as an option.
With its integrated radar and removable battery, it is mobile and easy to operate. It can also be equipped with a solar power supply kit or connected to public lighting.
Operation and strengths
- Tricolour numbers: green, orange, red according to the speed measured
- Successive display of three messages (two lines of text or pictograms), simultaneously with the speed
- Three power supply options
- Anti-record function
- Complete basic kit including fixing material
- Calendar function
- Pre-programmed speed regimes
- Customization of settings via USB key or Bluetooth (option)
- User-friendly software for managing measurement data
OPTIONS
- Bluetooth communication
- 3/4G modem
- Online analytics platform
- Three-colors text matrix
Technical features
| Displayable speeds | from 5 to 199 km/h |
| Detection speeds | from 5 to 250 km/h |
| Numbers size | 345 x 520 mm (H x L) |
| Text matrix size | 160 x 520 mm (H x L)/832 leds |
| Unit size | 775 x 665 x 140 mm (H x L x P) |
| Weight | 11.4 kg (without battery) |
| Protection level | IP65 |
| Mounting support |
hooks on the back of the unit + mast support |
| Operating Temperature | from -40 °C to +65 °C |
| Power supply | 12 V DC by rechargeable battery 12V/24 Ah or 220 V (grid or street lighting) or solar kit |
| Consumption | 0.2 VA |
| Battery life | depends on power supply |
| Frequency | K-band: 24.125 GHz |
| Transmitting power | < 5mW |
| Communication interface | USB (options : Bluetooth or GPRS) |
| Memory size | 540 000 measurements |
| Software | |
| – Operating system | Windows 10 or later, minimum 512 MB RAM |
| – Disk space | 200 MB |
| Detection distance |
> 200 m |
Use cases
- Speed prevention in the vicinity of schools
- Alert on road construction site
- Increase safety in neighborhoods
- Speed reduction to protect vulnerable road users
- Accident prevention on industrial site
