TMB-13X
The TMB-13X is the most flexible and versatile radar of the Icoms Detections product range.
Developed to manage multi-lane intersections, it replaces up to 9 inductive loops, offering separate detection areas for each lane, including the turn-right or turn-left lanes. It manages approaching vehicles and bicycles as well as the ones waiting at the stop-line.
Configuration via WiFi: connect, access the web interface and set up your virtual loops in just a few clicks. This plug & play approach significantly reduces installation time while optimizing maintenance costs. Efficient, simple and powerful.
Your benefit? Savings on budgets for:
- Road digging
- Security
- Intervention and maintenance
Operation and strengths

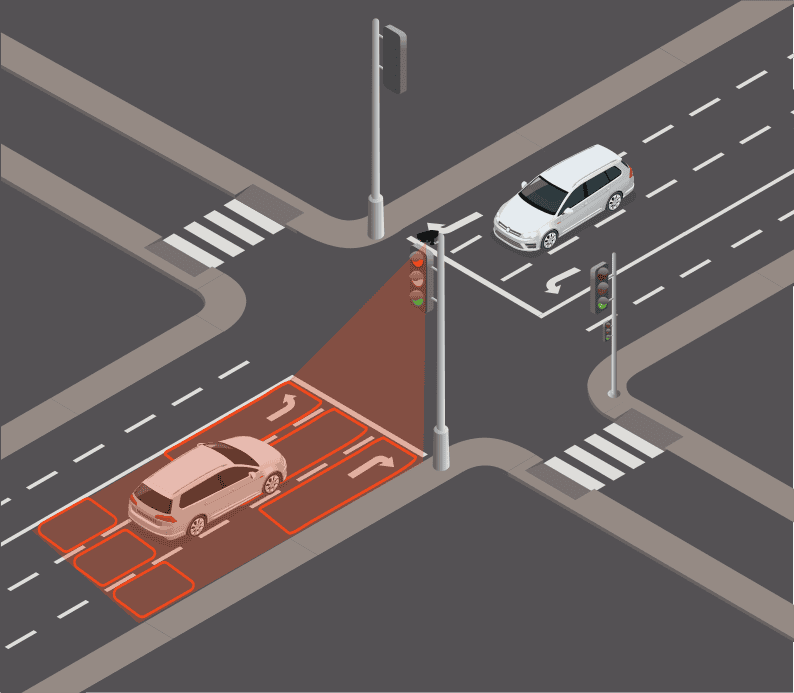

The TMB-13X detects vehicles on multi-lane intersections. The user can define up to 9 detection areas, configurable in position, size and function. Each area activates a relay, triggered on movement and/or presence: the relays can be activated until the object leaves the zone.
- Detection of moving and/or stationary vehicles
- Range: up to 120 m from installation point
- Detection of vehicles and bicycles
- Configuration via WiFi graphical interface, using a web browser
- Enriched data via RS-485 (position, count, speed, and length of targets)
- Comfort of installation and use:
- Above-ground installation
- No software needed
- Works in all weather conditions
- Maintenance-free
- Trustworthy
Technical features
| Recommended installation configuration |
minimum 4 m from the stop line |
| Detection direction | incoming, outgoing or bidirectional |
| Detection distance | up to 120 m from the installation point |
| Detectable speeds | up to 120 km/h |
| Size of unit | LV: L 68 x W 99 x D 151 mm MV & HV: L 68 x W 99 x D 234 mm |
| Weight (excluding cable and mounting bracket) |
LV: 0.45 kg; MV: 0.60 kg; HV: 0.63 kg
|
| Degree of protection | IP65 |
| Mount | specific system provided, adapted M8 |
| Operating temperature range | from -40 °C to +60 °C |
| Power supply | LV: 10-60 V DC / 8-30 V AC, 50-60 Hz MV: 21-75 V DC / 15-53 V AC, 50-60 Hz HV: 100-240 V AC, 50-60 Hz |
| Power consumption | less than 6 W |
| Frequency | W-Band: 76-77 GHz |
| E.I.R.P. | < 20 dBm |
| User output |
RS-485 + 3 built-in relays – Optional 9 relay outputs |
Use cases
- Regulation of traffic lights, up to 9 separate virtual loops: call, extension and presence at the stop-line
- Detection of bicycles in dedicated waiting areas
- All applications where multiple detection areas are needed
This video presents a typical application of the product, on a 4 lane intersection junction. The video shows the radar during operation triggering the virtual loops upon detection.
