TMB-334

The TMB-334 is a radar for multi-lane data collection.

It sends, for each vehicle which is moving in the detection area, the speed, the length, the direction and the XY position.

Quick and easy to install on existing infrastructure, it monitors up to 4 lanes in one or two directions and replaces multiple in-road sensors.

Your benefit?

– Reliable and accurate data, in all weather conditions, day and night

– Savings on budgets for:

    • Road digging
    • Security
    • Intervention and maintenance

Operation and strengths

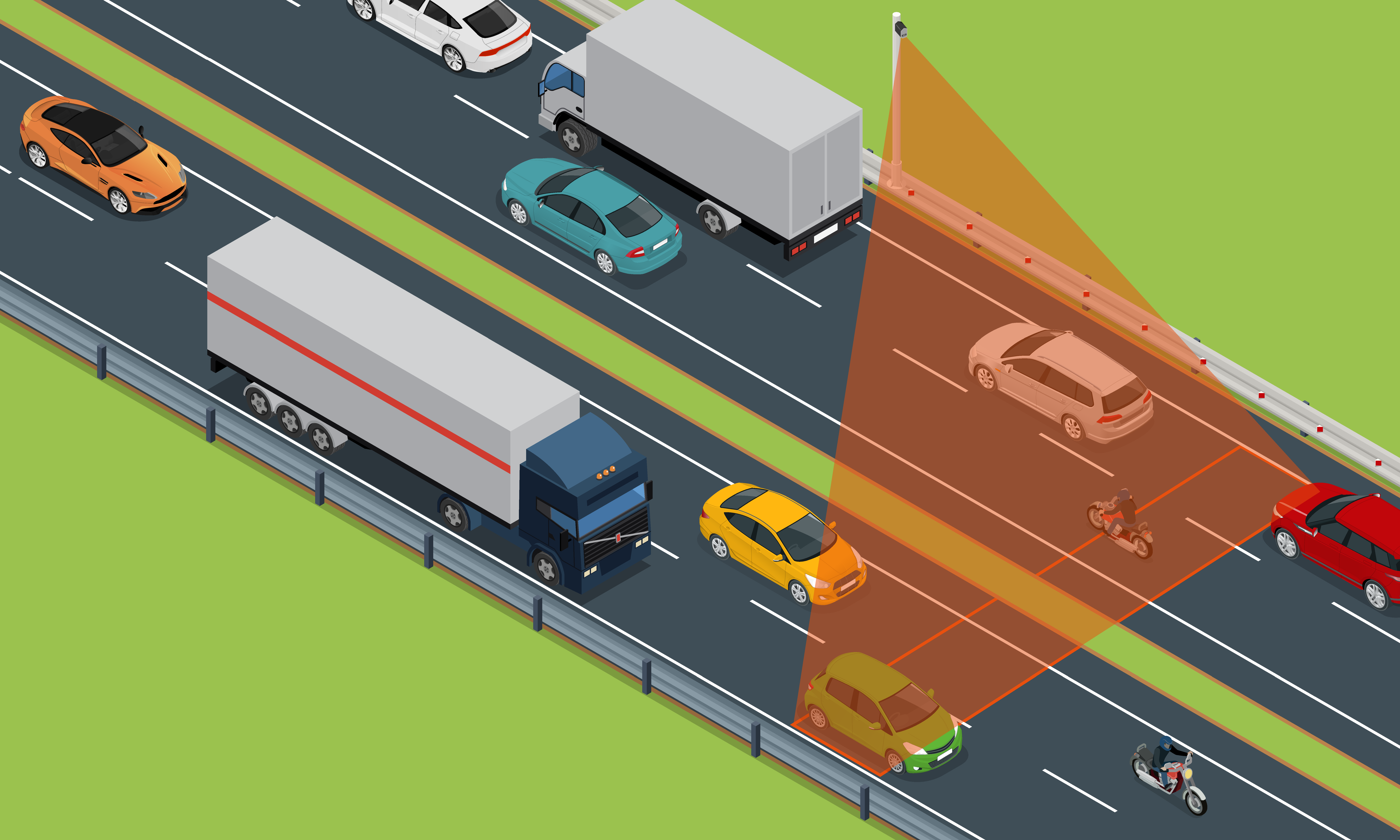

The TMB-34 counts and measures the speed, direction, position and length of vehicles on multi-lane roads. The user can define up to 2 detection areas, each per direction.

  • Detection on up to 4 lanes, whatever the direction
  • Comfort of installation and use:
    • Above-ground installation
    • Works in all weather and light conditions
    • Maintenance-free
    • Trustworthy
TMB-134L_Détouré

Technical features

Recommended installation configuration

side of the road, height between 5 and 7 m

Detection direction incoming, outgoing or bidirectional
Detection distance up to 65 m from the installation point
Detectable speeds from 3 to 240 km/h km/h
Size of unit LV: L 68 x W 99 x D 151 mm
MV & HV: L 68 x W 99 x D 234 mm
Weight (excluding cable and mounting bracket)

LV: 0.45 kg; MV: 0.60 kg; HV: 0.63 kg

Degree of protection IP65
Mount specific system provided, adapted M8
Operating temperature range from -40 °C to +60 °C
Power supply LV: 10-60 V DC / 8-30 V AC, 50-60 Hz
MV: 21-75 V DC / 15-53 V AC, 50-60 Hz
HV: 100-240 V AC, 50-60 Hz
Power consumption less than 6 W
Frequency W-Band: 76-77 GHz
E.I.R.P. < 20 dBm
User input/output

RS-485



Use cases

  • Traffic data collection on motorways and national roads
  • Road statistics
  • Heavy goods vehicle traffic assessment
